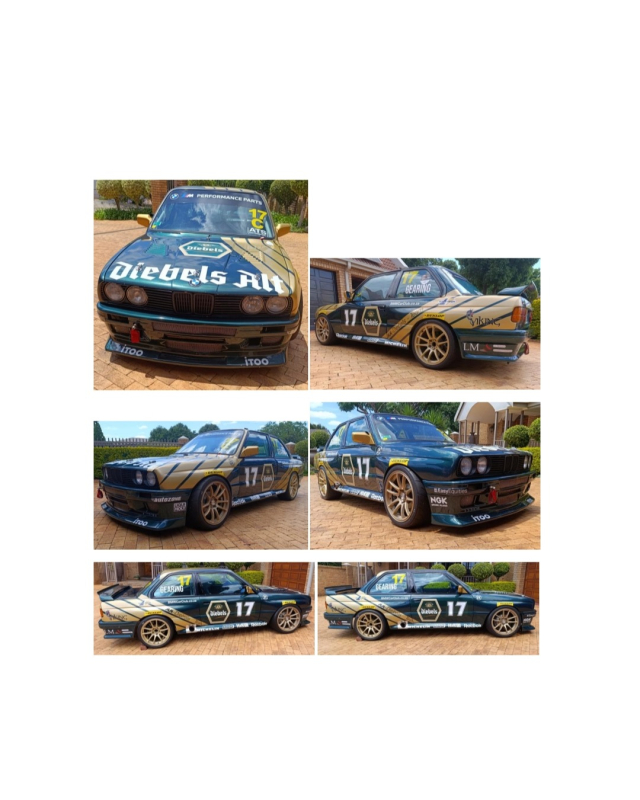

BMW E30 335iS Diebels Alt Hommage Race Car

PRICE R850,000 (Eight hundred and fifty thousand rand)

Contact Owner Rob Gearing on +27-83-702-7122

Synopsis
This unique South African built E30 was built as a modern day interpretation of Christian Danner’s E30 DTM car of 1992.

Professionally built from the ground up and at no expense spared, this Iconic Recreation has been built around an N55 335i engine, coupled to a

5speed H Pattern manual gearbox, electronics throughout by Motec, Professional Race Suspension and Brakes and lightened to 1000kg wet weight.

Performance (running RON 95 Unleaded Pump Fuel) 270kW (Wheel horsepower on a Hub Dyno) at 0,7 Bar boost 450Nm mapped on a linear torque curve for easier drivability

Approx 210km/h Max speed with current gearing

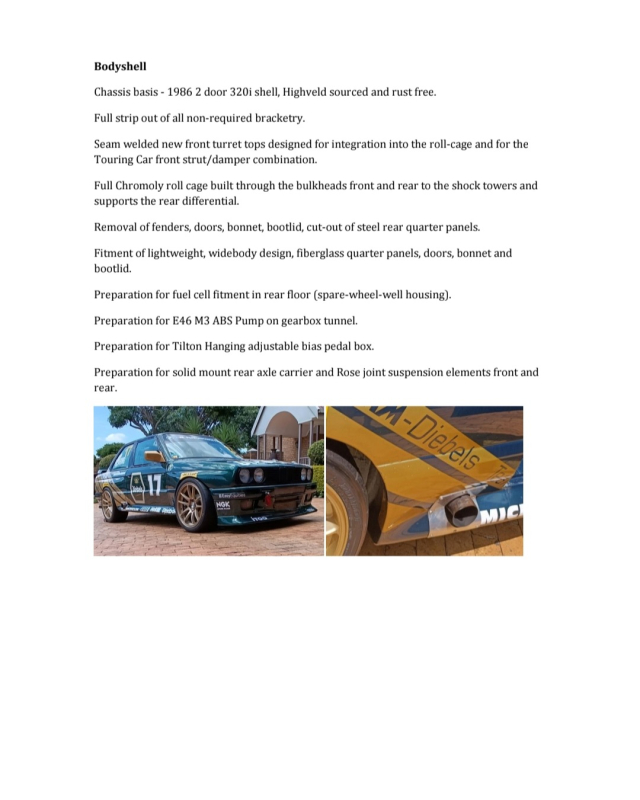

Bodyshell :
Chassis basis - 1986 2 door 320i shell, Highveld sourced and rust free.
Full strip out of all non-required bracketry.
Seam welded new front turret tops designed for integration into the roll-cage and for the Touring Car front strut/damper combination.
Full Chromoly roll cage built through the bulkheads front and rear to the shock towers and supports the rear differential.

Removal of fenders, doors, bonnet, bootlid, cut-out of steel rear quarter panels.
Fitment of lightweight, widebody design, fiberglass quarter panels, doors, bonnet and bootlid.
Preparation for fuel cell fitment in rear floor (spare-wheel-well housing).
Preparation for E46 M3 ABS Pump on gearbox tunnel.
Preparation for Tilton Hanging adjustable bias pedal box.
Preparation for solid mount rear axle carrier and Rose joint suspension elements front and rear.

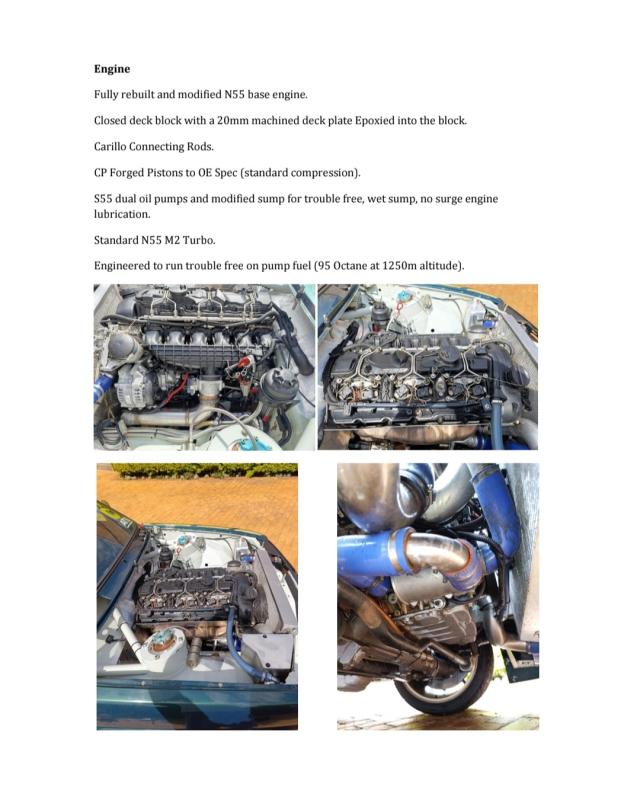

Engine
Fully rebuilt and modified N55 base engine.
Closed deck block with a 20mm machined deck plate Epoxied into the block.
Carillo Connecting Rods.
CP Forged Pistons to OE Spec (standard compression).
S55 dual oil pumps and modified sump for trouble free, wet sump, no surge engine lubrication.
Standard N55 M2 Turbo.
Engineered to run trouble free on pump fuel (95 Octane at 1250m altitude).

Gearbox, clutch and rear differential
E46 330i 5 speed manual gearbox (direct 1:1 5th gear) with modified bellhousing to adapt to N55 engine block.
Double plate sintered race clutch (Rated to 1000 Nm Torque).
All Aluminum E30 rear differential housing with 3,91:1 final drive ratio. Multi-plate, adjustable pre-load, Limited Slip Differential. Full support front and rear from the roll cage elements.

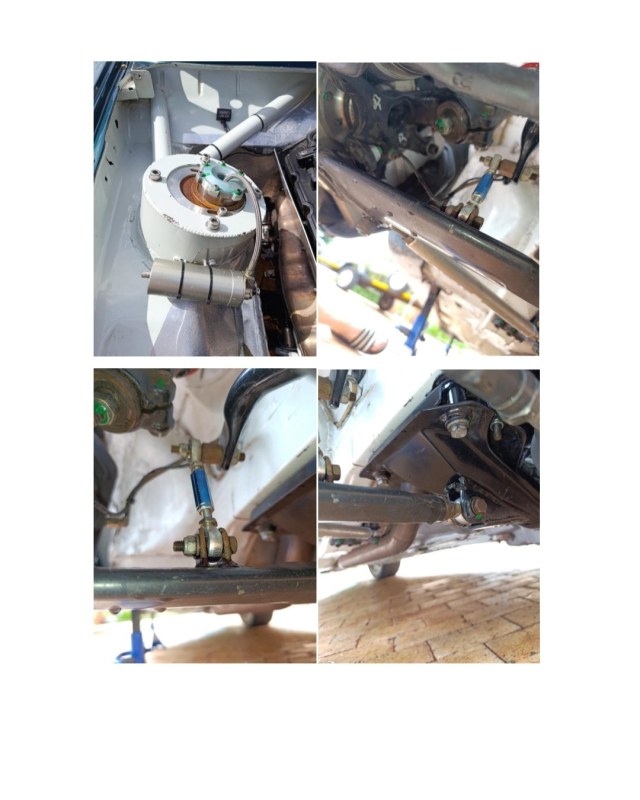

Suspension and brakes
Front
Rose jointed bespoke lower control arms, fully adjustable.
Touring Car sliding cylinder front dampers.
Narrow Race Springs.
E46 Front Hubs.
Tilton Hanging Pedal Box with Adjustable Brake Bias
BMW M2 Cup 365 HP Alcon Big Brake Kit - CAR8949Y46 6 piston front calipers, matching
380mm disks and hats, Pagid RSL Endurance Race Pads.

Rear
Rose jointed (outer) E30 trailing arms.
Penske 1 way adjustable race dampers.
Narrow Race Springs.
Standard OEM Hubs.
F30 340i rear brake discs and callipers.
EBC Blue pads.

Wheels and Tyres
Wizard 9,5J x 18 Rim Sets x 2.
Dunlop 265 Semi-slicks.

Electronics
Motec M142 ECU – closed loop Lambda, Auto Tuning, Altitude compensation, Logging, Traction Control.
Motec PDM15 Power Distribution Module.
Motec CDL3 Dash incl GPS Logging.
Motec Warning Lights Module.
Motec System professionally wired to N55 OEM Engine wiring harnesses (replaced new during the build).
Bosch E46 M3 ABS Pump with bespoke E46 M3 wheel speed sensors.

Cooling
F10 M5 Radiator.
Remote Engine Oil cooler.
Bespoke Intercooler for Air inlet cooling.
Water spray system for additional cooling (triggered at 50 degrees air inlet temperature, 5
litre passenger footwell mounted reservoir).
Fuel System
Bespoke race (foam filled) fuel cell mounted in wheel-well in a bespoke casing.
Remote surge tank.
Bosch High Pressure Fuel Pump and fuel filter.
Race spec braided hoses and fittings throughout.

Interior
OMP Removable Steering Wheel.
SABELT Race Seat with Head protection.
ATS 6 point Hans ready Race Harnesses.


Trailer
Gladiatrix 2 Ton Single Axle Car Trailer – built by Trailers Unlimited, a registered and
homologated South African Trailer Manufacturer.
